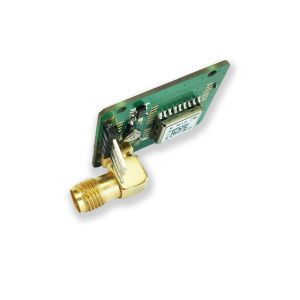

OTW WT-11-RKB Beidou RTK Module for Centimeter-Level Positioning

MOQ : 1 piece

Price : $7.13-7.97 / piece

origin : China

model : WT-11-RKB(Development Board)

form : compass module

Country or region of origin : Shenzhen Guangdong, China

brand : OTW

chip : XX

application : Positioning, surveying and mapping, etc

Operating mode : BDS

Locate mode : A-GNSS,Double frequency RTK

Update frequency : 0.25-10 Hz

Contact Now

OTW WT-11-RKB Beidou RTK Module for Centimeter-Level Positioning

Application:

Base station, power, communication positioning field ● Surveying and mapping products such as area measurement and distance measurement ● Synchronize UTC time and timing areas ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent Internet of Things, intelligent driving, drones and other fields ● Shared bikes, wearable devices, etc

Features:

●Built-in dual frequency RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning

Module performance
Model	WT-11-RKB(Development Board)
Receiver type	BDS:B1I/B1C & B2a
Protocol	NMEA-0183 or Custom
Available Baud Rates	4800bps~921600bps(default 115200bps)
Number of Channels	128
Sensitivity	Tracking: -167dbm Capture: -158dbm Cold start -148dBm
Cold Start	Average 28 seconds
Hot Start	Average 1 seconds
Horizontal Accuracy	Horizontal 1cm+1ppm CEP50；Elevation 2cm+1ppm CEP50
Maximum Height	18,000 meters.
Maximum speed	515 m/s
Maximum acceleration	≦ 4G
Update frequency	0.25-10Hz
Positioning method	A-GNSS,Double frequency RTK

Port
Port	Pin arrangement/customization
Physical property
Type	18PIN LCC package
Size	25.6mm26.5mm11.8mm (+/- 0.5mm)
Power supply
Voltage	1.8V~3.3V
Power Consume	Operation mode: 25mA@3.3V, Standby mode: 8mA (@3.3V)
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃

Company Profile

Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company integrating the R & D, production, sales and service of wireless positioning communication products, semi-finished products, finished products and supporting terminals. it has many international well-known enterprises in-depth cooperation resources and a number of elite and senior R & D and design teams.
We always take customer demand as the original strategy, providing wireless and portable high-end consumer electronics solutions, specializing in navigation, positioning, tracking, timing, communications, wireless connections and other professional products, semi-finished products and products, mainly centimeter-level positioning terminals, wearable children's smartwatches, pet track.

Logistics & Payment

FAQ

Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
